The huge transformer, heatsinks and fan are behind the panel.
had to resort to some affordable temporary replacements.

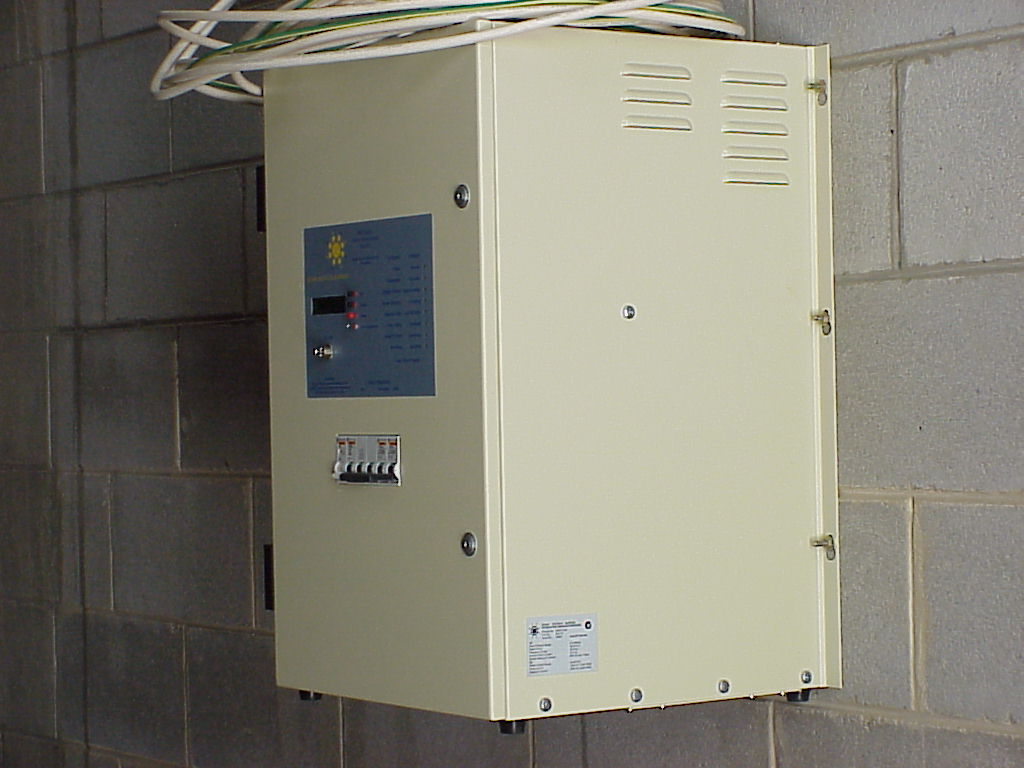

| The inverter/charger (pure sine, 10KVA peak) |

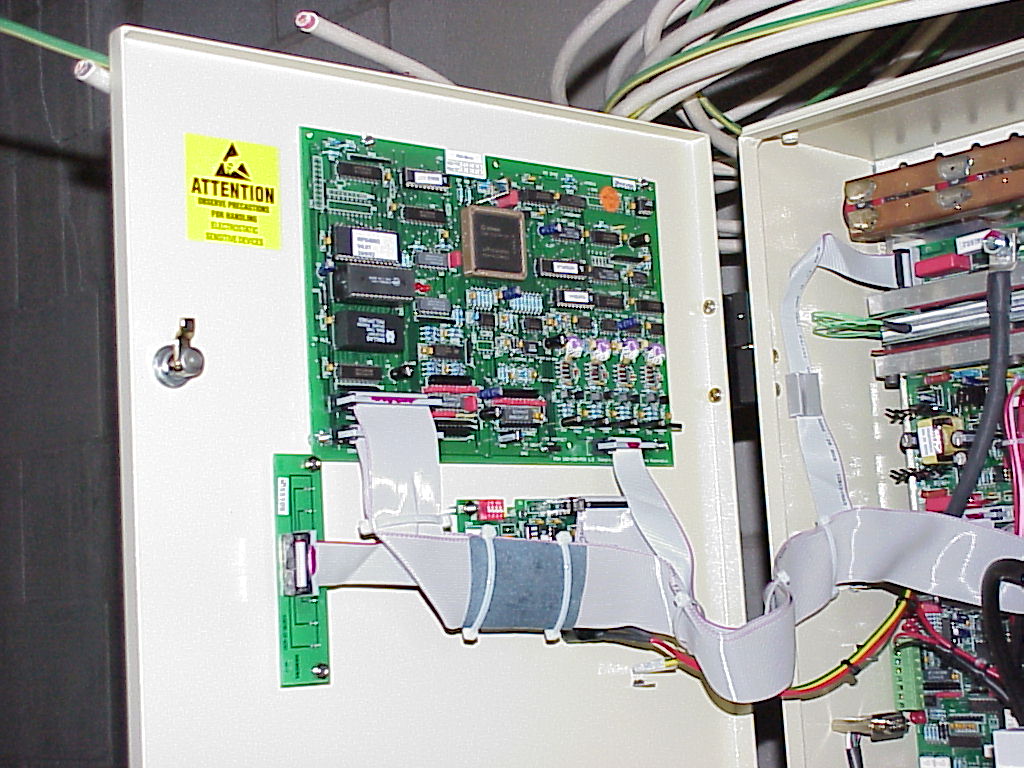

| Inside the inverter (processor board) |
| Inside the inverter (power) The huge transformer, heatsinks and fan are behind the panel. |

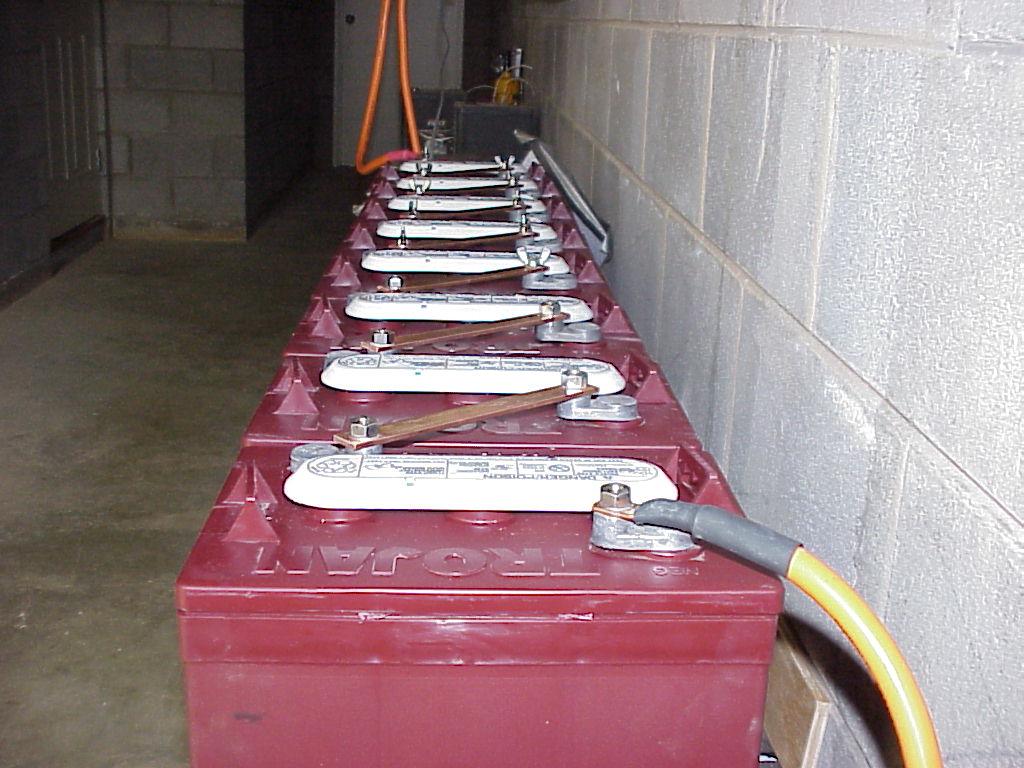

| Original battery bank |

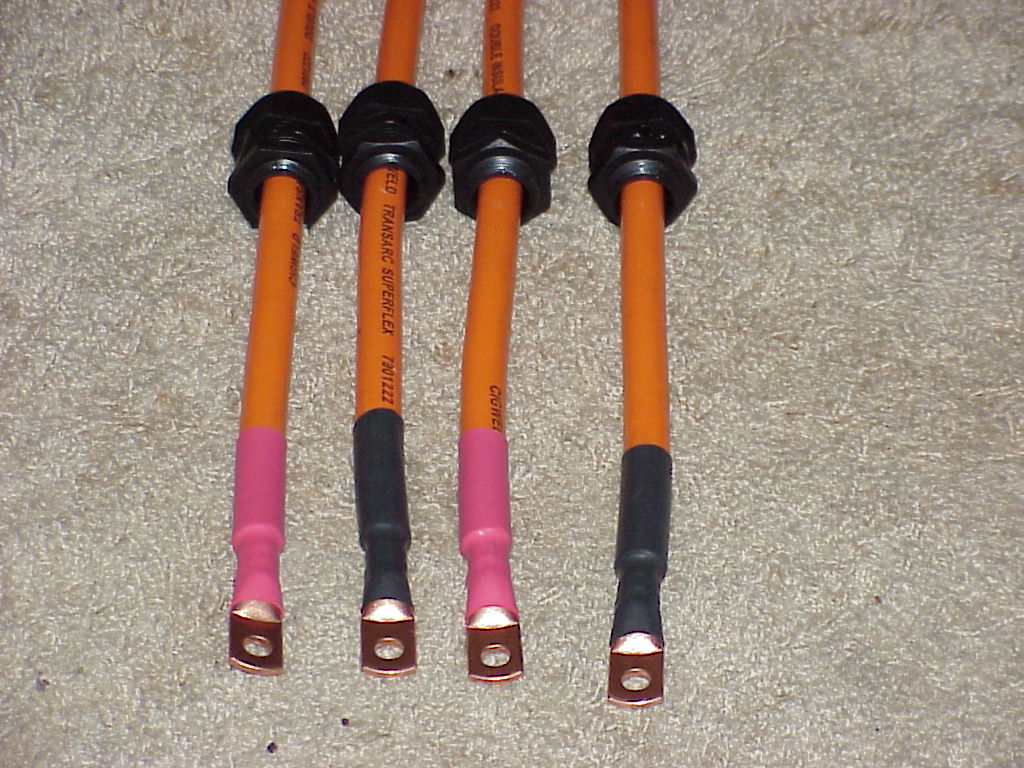

| My home-made battery leads |
| Temporary hookup, one bank only connected. |

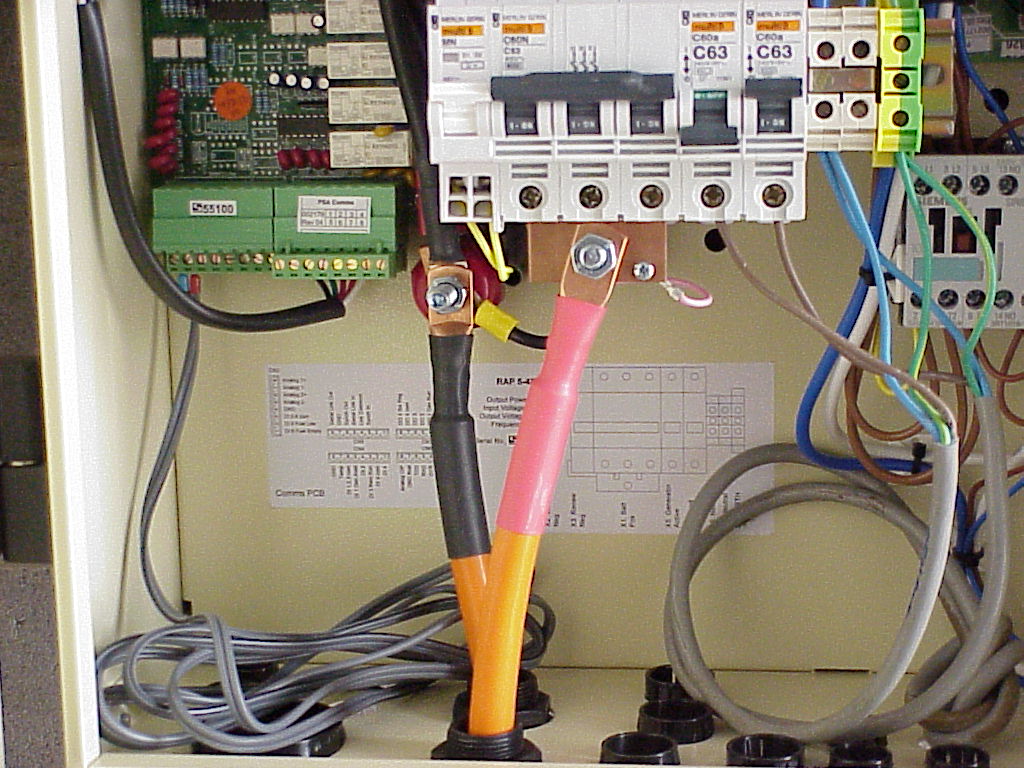

| Inside the inverter |
| Bolted the generator frame to the floor, mounted the engine and alternator. |
| Missing all the controls, filters, air cleaner, oil cooler, belts, guards etc. |
| Drive belt and tensioners |
| Exhaust from engine to the heat exchanger (viewed from above) |
| Inside the heat exchanger |
| Exhaust coupling to outside |
| My home-brew generator controller |
| One of several display modes |
| After the IDIOT contractors destroyed my battery bank had to resort to some affordable temporary replacements. |

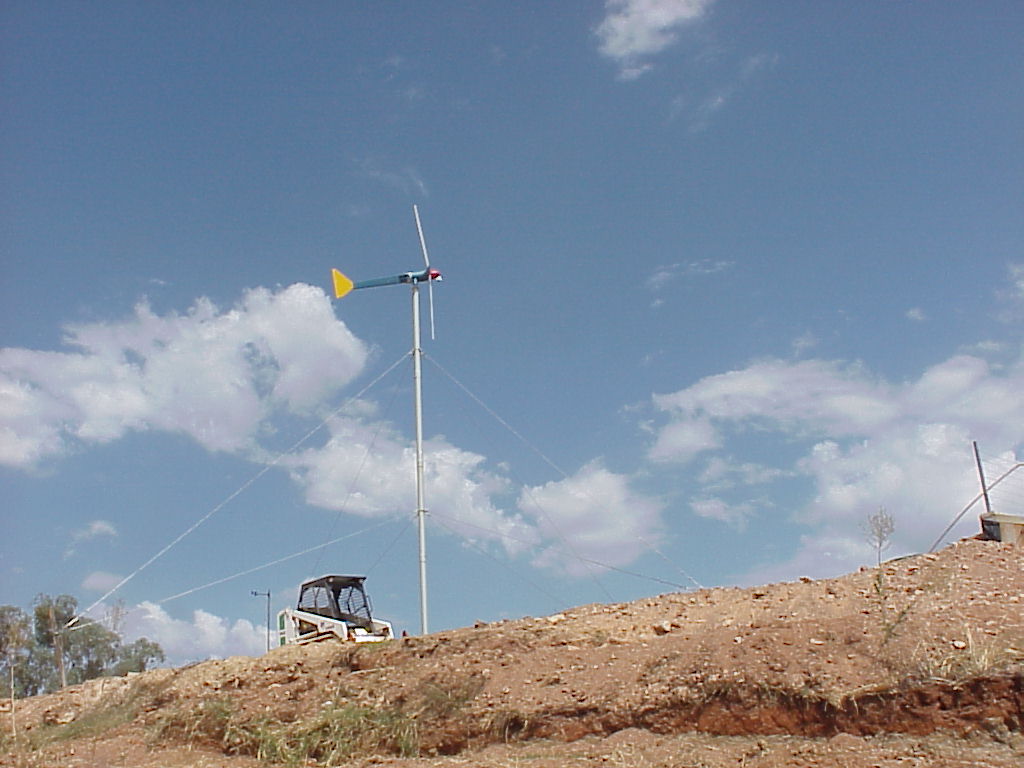

| 1KW wind turbine installed |
| The current battery bank, hopefully last the next 10 years or so! |

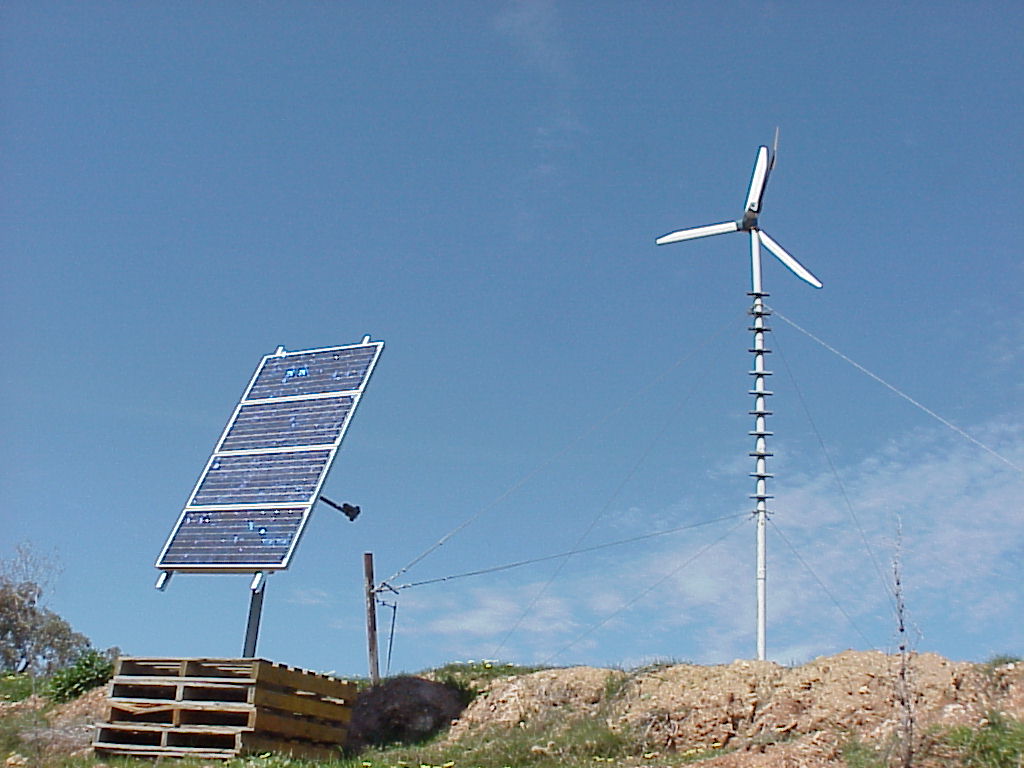

| Solar panels on tracker |
| Mechanics of the tracker |
| My home-made 3-phase, 70A rectifier for the turbine. |
